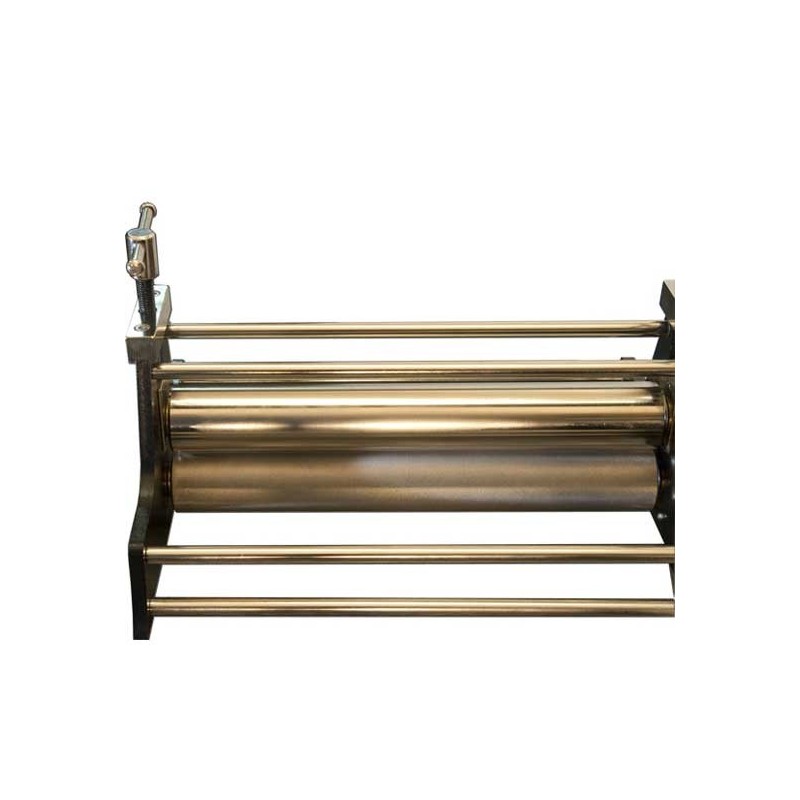

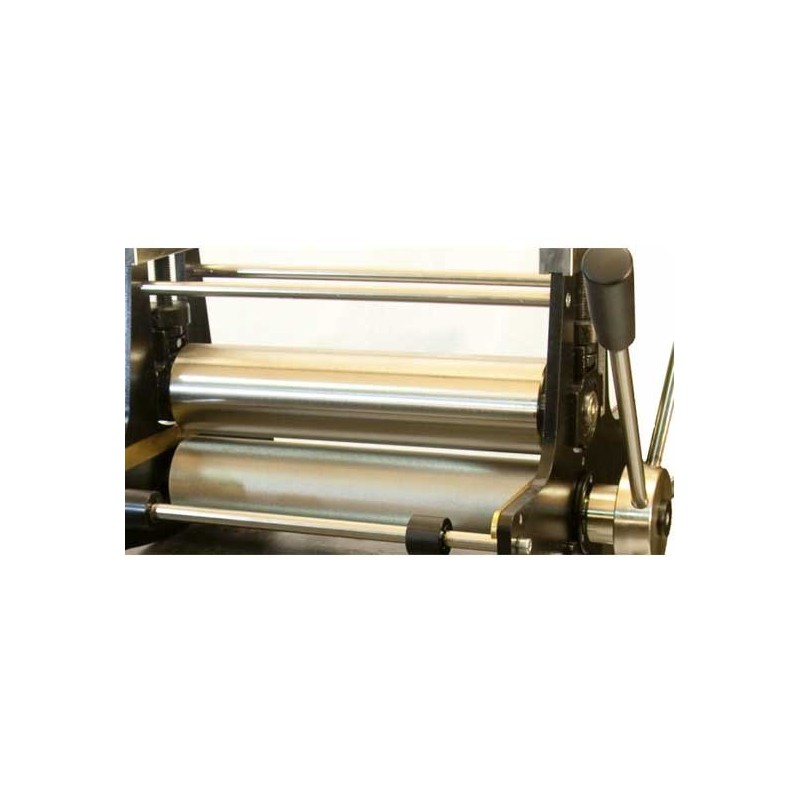

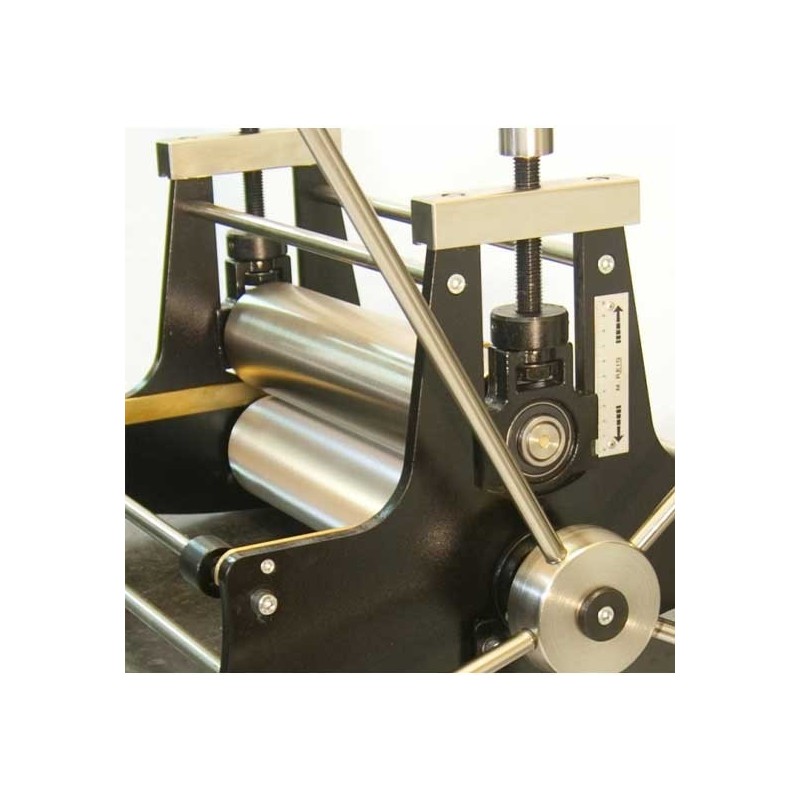

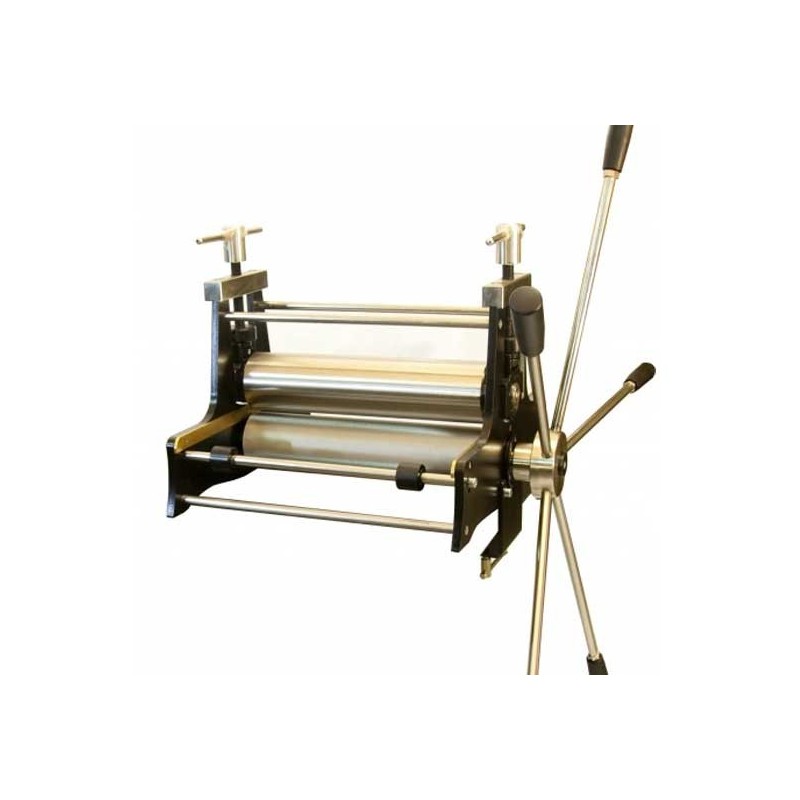

ref: R-400
Details
- Etching press made of chrome steel and painted in epoxy.
- Tabletop etching press.
- Diameter of the cilinders: 100 mm, with lower roll knurled.
- Top cilinder with oscillating bearings.
- Capacity of the platen: 400 mm wide by 800 mm long.
- Activation by 5 handles.
- >Maximum aperture between cilinders: 55 mm.
- Incorporates milimiter scales to control the pressure of the cilinders.
- Sliding over 4 rolling wheels.
- Bronze side guides for a better sliding.
- Dimensions of the etching press: Length:517 mm, width: 475 mm, height:405 mm.
- Approximate weight: 45 Kg.
- Fixation flange for table.
- Rigid fiber platen (special) 408x800x10 mm.
- GIFT: Felt of 400x800mm., 3 mm and 5 mm.
