ref: 66-ARCEST10-A0-R
Details

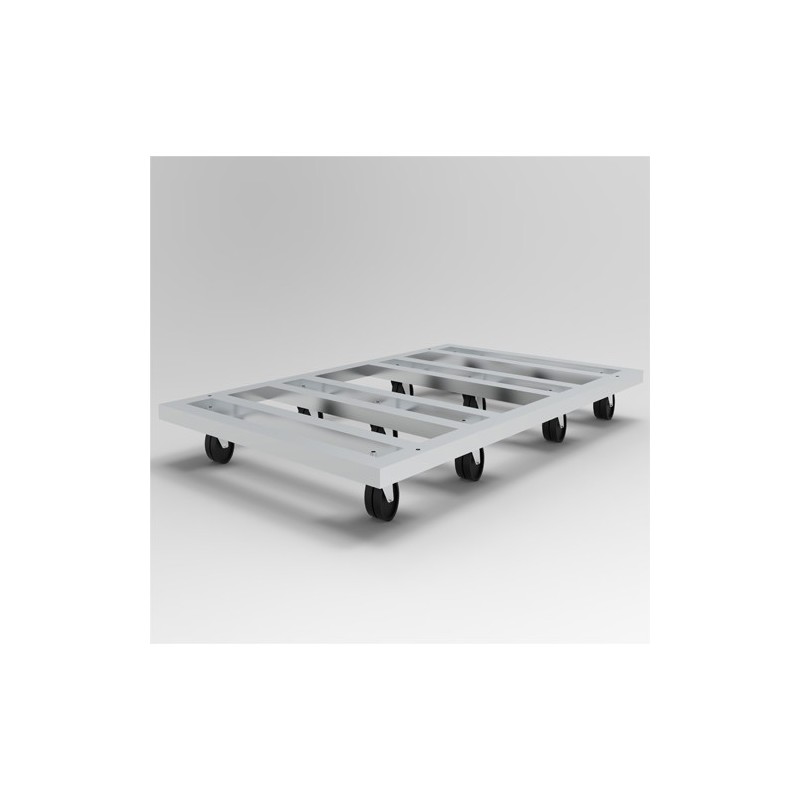

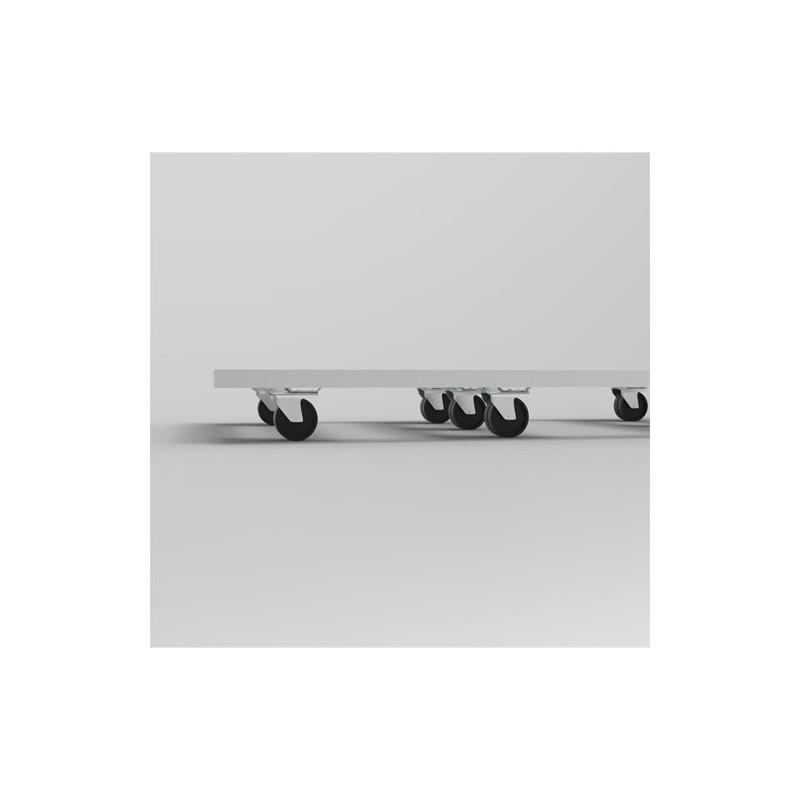

Reinforced base with wheels for A0 horizontal drawing file
The Reinforced Base with wheels for the A0 horizontal drawing file cabinet is designed as a complement to the file cabinet that needs to be equipped with mobility, with its structural design of plates, horizontal tubes and 10 wheels, this base can support up to 4 sections of 5 drawers with their upper lid.
- The structure is joined by semi-automatic MIG/MAG welding and painted with electrolytic paint (powder).
- Horizontal tubes for plate support 60 x 30 x2 mm.
- Perimeter tube of 60 x 30 x 2 millimeters.
- 10 Industrial wheels to provide the plinth base with great rigidity and mobility.
- Plates made of 6-millimeter pickled sheet metal with a billet of 18-millimeter diameter and metric 10 for fixing the wheels.
- 4 Holes for the positioning of the filing cabinet sections.
