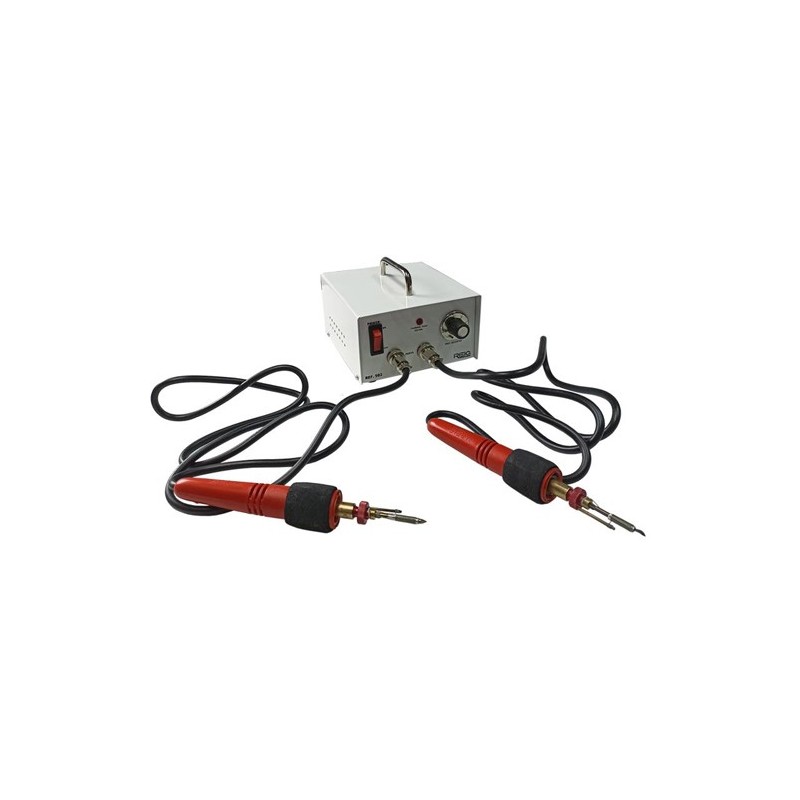

Reig 502 two-socket pyrography machine with two handpieces and tips, front view of the red case | Totenart
Front panel of the Reig 502 pyrography machine with two sockets, power switch and heat adjuster | Totenart
Sockets A and B of the Reig 502 pyrography machine with one handpiece cable plugged in | Totenart
Back of the Reig 502 pyrography machine with rating label and power cable | Totenart
Reig 502 two-socket pyrography machine with two long-cable handpieces and tips, complete set | Totenart
Reig 502 two-socket pyrography machine with two handpieces and tips, front view of the red case | Totenart
Front panel of the Reig 502 pyrography machine with two sockets, power switch and heat adjuster | Totenart
Sockets A and B of the Reig 502 pyrography machine with one handpiece cable plugged in | Totenart
Back of the Reig 502 pyrography machine with rating label and power cable | Totenart
Reig 502 two-socket pyrography machine with two long-cable handpieces and tips, complete set | Totenart
Sale
Reig

Reig 502 Electronic Pyrography Machine, Two Outputs

Reference: 25502-00

Reig 502 pyrography machine with two outputs (used at the same time): 35 W, voltage adjustable from 8 to 16 V with potentiometer and temperature up to about 750 °C, for burning wood, leather, fabric, paper, suede and stone. Two people can burn at the same time, or one person can work with two tips at once. Includes 2 handles and 2 no. 1 tips.

Learn more
-10%
€288.89 €260.00

Unit price (tax included)

Request information

Notify me when it's back in stock

The Reig 502 pyrography machine is a professional pyrography station with two outputs (used at the same time) for drawing with heat on wood, leather, fabric, paper, suede and stone. A potentiometer adjusts the voltage from 8 to 16 V and the tip temperature, up to about 750 °C, and the short distance between tip and handle gives more precision. Two people can burn at the same time, or one person can work with two tips at once. It is supplied with 2 handles and 2 no. 1 tips. It is made by Manualidades Reig.

Features

  • Brand: Reig (model 502-00)
  • Outputs: 2
  • Output voltage: 8 to 16 V, adjustable with potentiometer
  • Power: 35 W; maximum consumption 0,16 A; 220 V supply
  • Temperature: adjustable up to about 750 °C
  • Dimensions: 176.5 x 133 x 87.5 mm
  • Finish: epoxy; with safety fuse
  • Includes: 2 handles and 2 no. 1 tips
  • Model adapted to the European standard (CE marking)
  • Warranty: 2 years (manufacturer)

Temperature by material

With the regulator you control the temperature to work on different materials, get different tones and shade without pressing the tool into the material. Manufacturer reference: delicate materials, 200–300 °C; harder materials such as wood or stone, 300–500 °C.

Spare handles and tips

The machine is sold with 2 handles and 2 no. 1 tips. If you later want a spare handle to keep another tip mounted and change effect without waiting for the tip in use to cool down, check your machine's output first: each handle only fits the output of its own machine model. Tips, on the other hand, fit all handles. You will find them all in pyrography machines and tips, including the set of 15 tips, and the Reig 501 one-output machine.

Frequently asked questions

What is included with the Reig 502?

It includes 2 handles and 2 no. 1 tips. Other tips are sold separately, individually or in the 15-tip set.

What is the difference between the Reig 501 and the Reig 502?

The 501 has one output and 30 W; the 502 has two outputs that work at the same time and 35 W. Both adjust voltage from 8 to 16 V and share the same size.

What temperature does it work at?

The regulator reaches about 750 °C. Delicate materials: 200–300 °C; wood or stone: 300–500 °C.

Which materials can I burn?

Wood, leather, fabric, paper, suede and stone.

How do I change tip without waiting for it to cool down?

With a spare handle: keep another tip mounted on it, remove the handle in use (with the hot tip) and fit the other. Before buying a spare handle, check your machine's output: each handle only fits the output of its own machine model.

Which handle do I need if I want a spare?

The one that matches your machine's output. The connector has changed over the years and there are several handle models. If in doubt, write to us with your machine model.

What warranty does it have?

The manufacturer states 2 years from the date of purchase.

Type Pyrography tool
