ref: 66-RB1050-2

Ribes

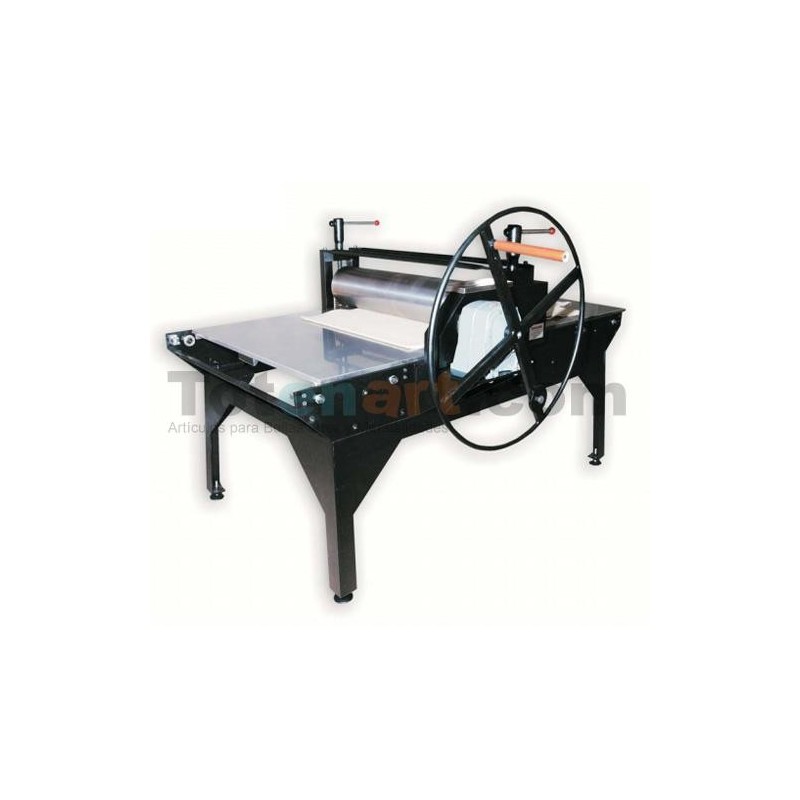

Professional Etching Press RB 1050-2

IMPORTANTE: La alta demanda de Tórculos de los últimos meses puede provocar un retraso en los plazos de entrega por parte de fábrica en algunos modelos. Si su pedido es muy urgente, indíquelo al hacer el pedido para que le informemos de la fecha estimada.

Details

  • RB1050-2 Press
  • Built on laminated profiles.
  • Platen of 1050 x 2000 mm.
  • Undeformable frame thanks to spacers that maintain it perfectly rigid.
  • Top and lower cilinders of 215 mm diameter, with 18 mm wall and solid axle of 60 mm diameter.
  • Iron Platen mecanized by all its faces, with stainless steel cover of 1.5 mm thick mounted on its top face.
  • Frame with 10 bearings with platen guide that completely eliminates the side movements.
  • Both extremes of the platen and its lower part are mounted with security nylon tops.
  • The pressure works by two spindles with micrometric head and graduate scale, from which the pressure of the cilinders can be calibrated milimetrically.
  • The activation is by a wheel, with reducer by gear box, with a coeficient of reduction of 1:28.
  • Aprox. weight of 920 kgs.
