ref: 66-RB800-1

Ribes

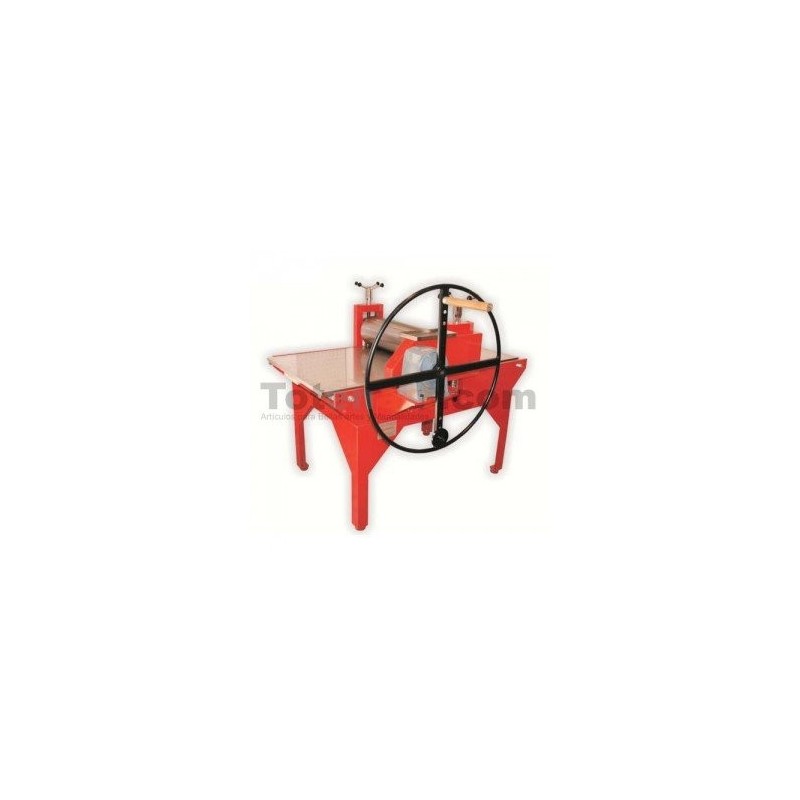

Professional Etching Press RB 800-1


Details

  • RB800-1 Press
  • Built on laminated profiles.
  • Platen of 800 x 1250 mm.
  • Undeformable frame thanks to spacers that maintain it perfectly rigid.
  • Top and lower cilinders of 215 mm diameter, with 18 mm wall and solid axle of 60 mm diameter.
  • Iron Platen mecanized by all its faces, with stainless steel cover of 1.5 mm thick mounted on its top face.
  • Frame with 6 bearings with platen guide that completely eliminates the side movements.
  • Both extremes of the platen and its lower part are mounted with security nylon tops.
  • The pressure works by two spindles with micrometric head and graduate scale, from which the pressure of the cilinders can be calibrated milimetrically.
  • The activation is by a wheel, with reducer by gear box, with a coeficient of reduction of 1:28.
  • Aprox. weight of 516 kgs.
