ref: R100A

Reig

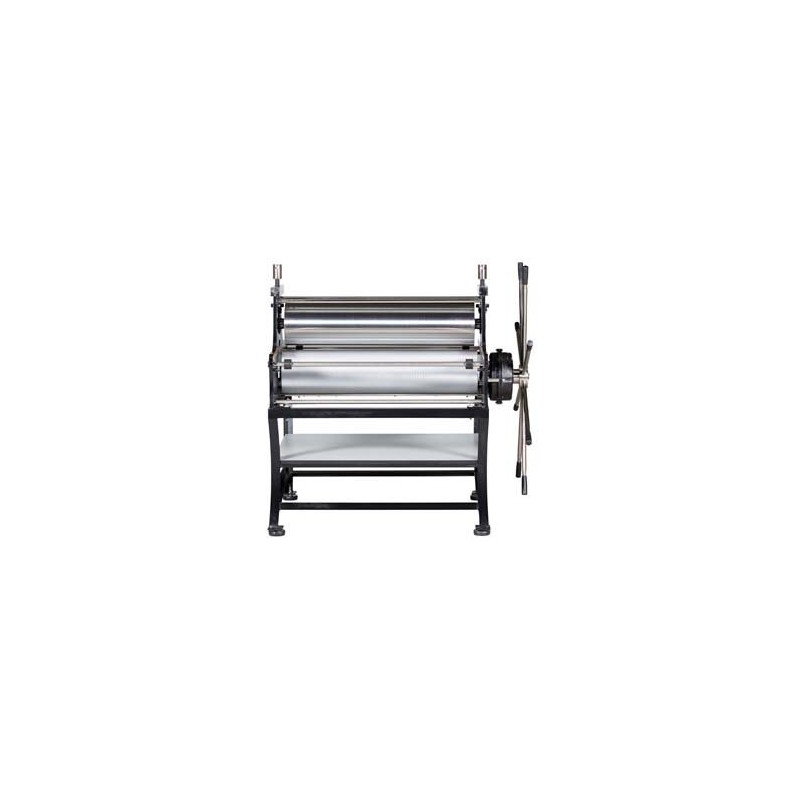

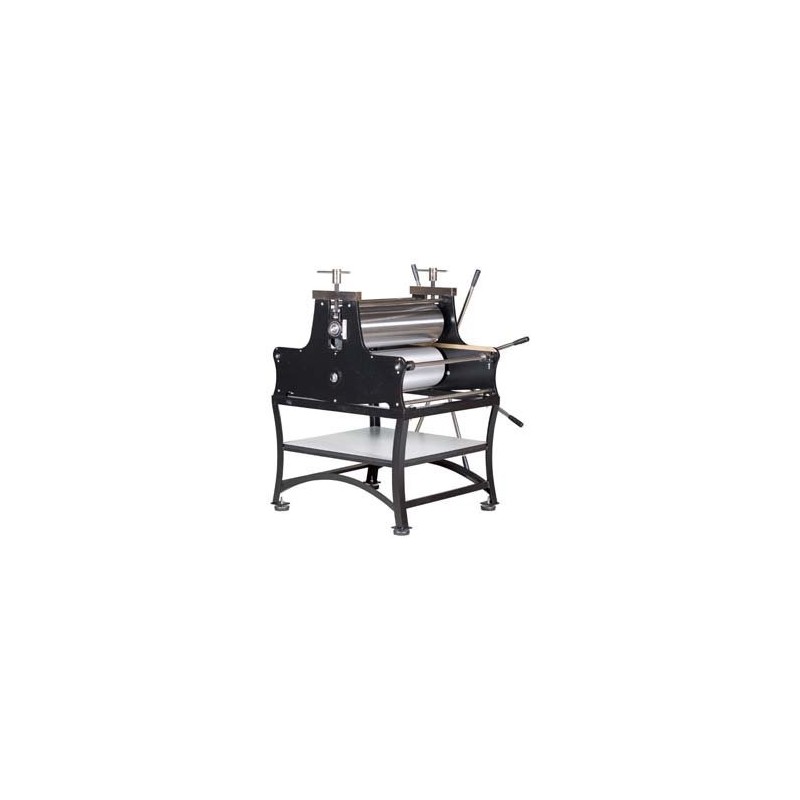

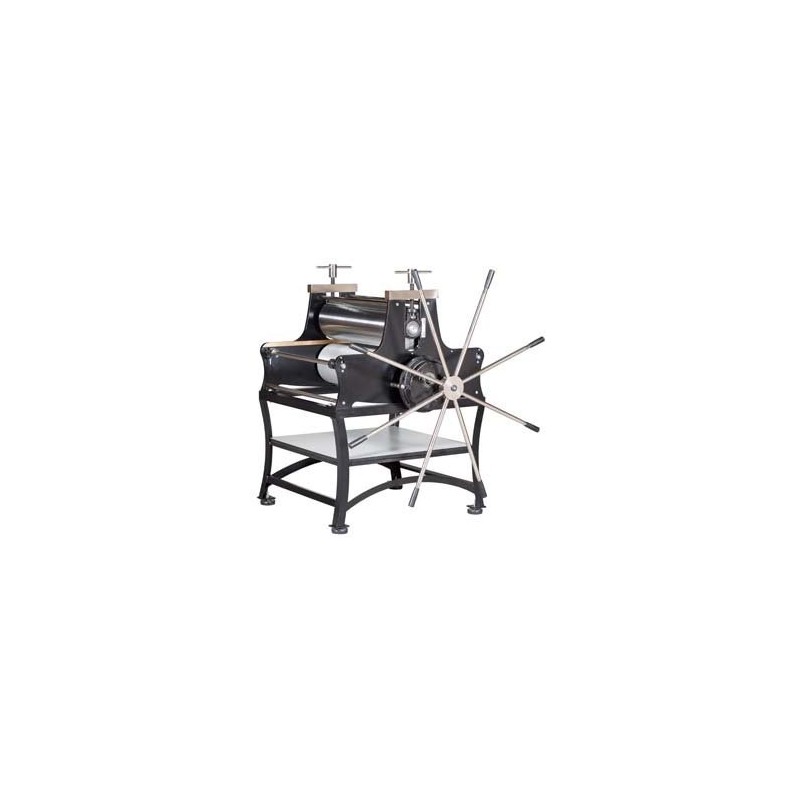

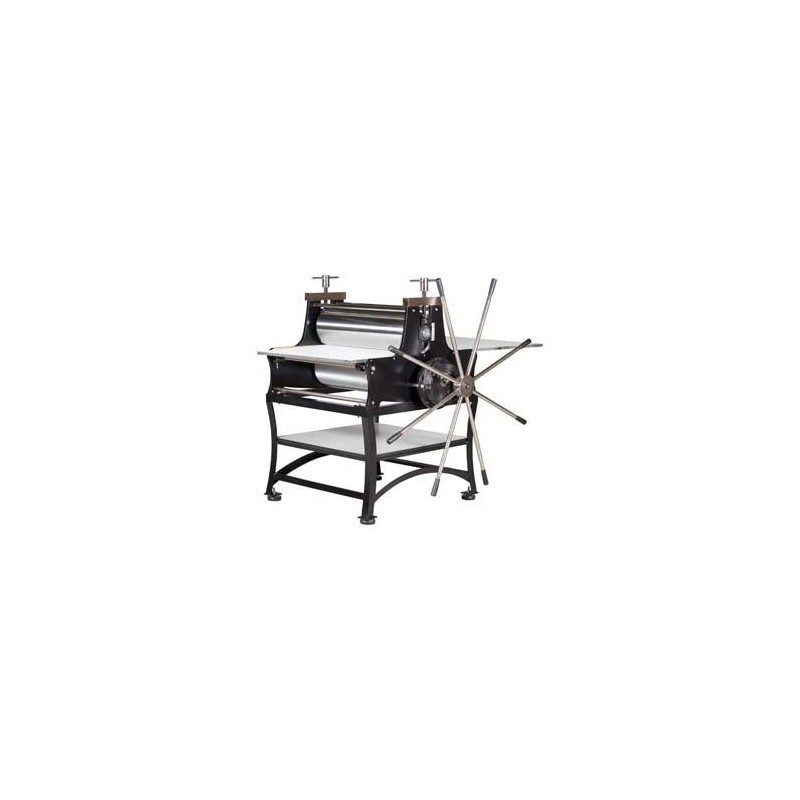

Professional Etching Press 100A (handles)


Details

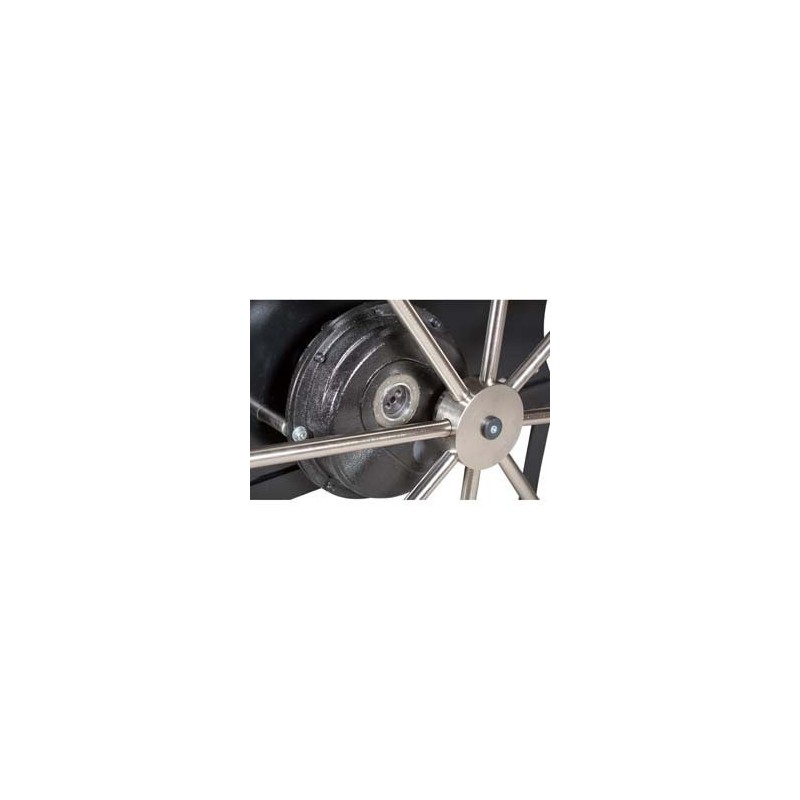

  • Stamping torch WITH REDUCER (ratio 1 to 20), with built-in table, made of steel and painted in epoxy.
  • Cylinder diameter 250mm, with knurled bottom roller for greater drag.
  • Upper cylinder with oscillating bearings.
  • Plate capacity 1100 wide by 1600 mm long.
  • Actuation using 8 blades.
  • Maximum opening between cylinders 80 mm.
  • Incorporates millimeter strips to control the pressure of the cylinders.
  • For optimal sliding and guiding of the plate incorporates 4 rotating wheels and two copper side guides.
  • Incorporates 4 regulators to balance the plate.
  • Tórculo dimensions:
    • length: 1400 mm.
    • width: 1000 mm.
    • height: 1480 mm.
    • Approximate weight of the tórculo: 480 Kg.
    • Table dimensions 1167x1005x560 mm.
  • ACCESSORIES:
    • Rigid fiber plate ANTIDEFORMATION 1100x1600x20 mm.
    • Felt of 1050x1600x3 mm.
    • Felt 1050x1600x5 mm.
    • Special wooden packing for tórculo.
