ref: R800A -asp-
Details

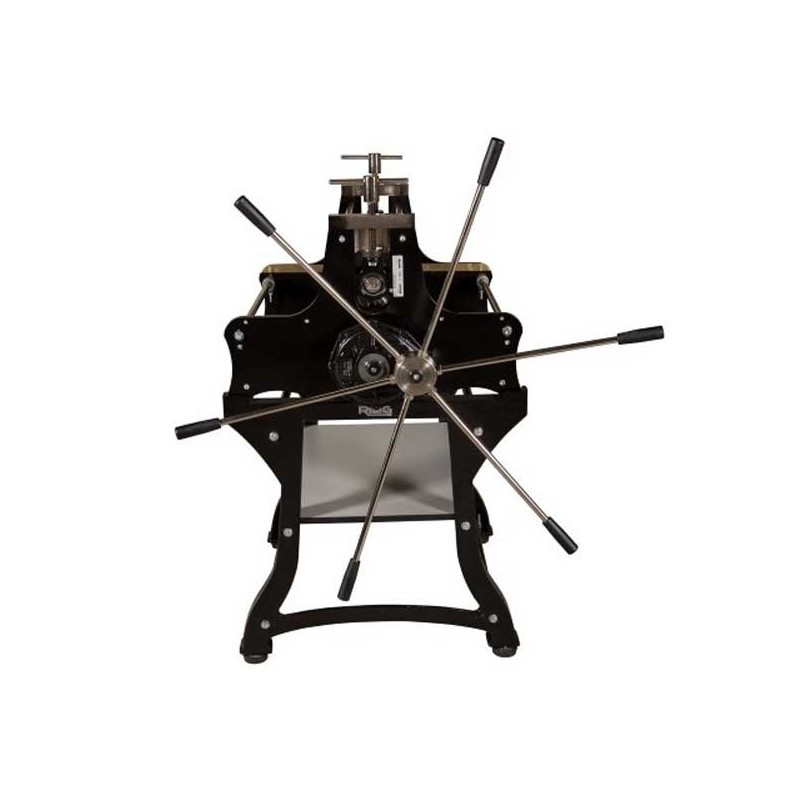

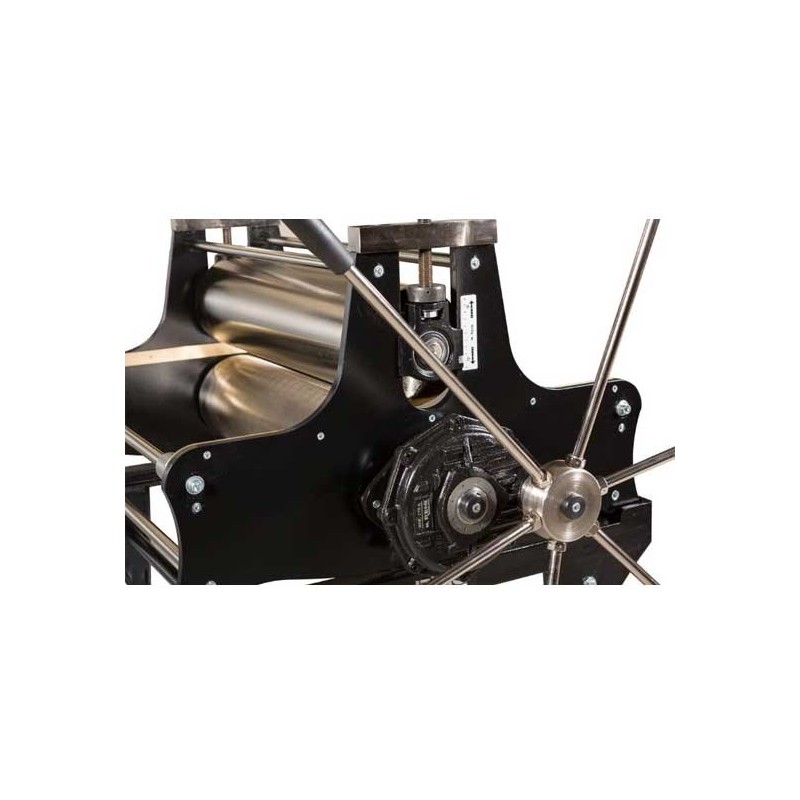

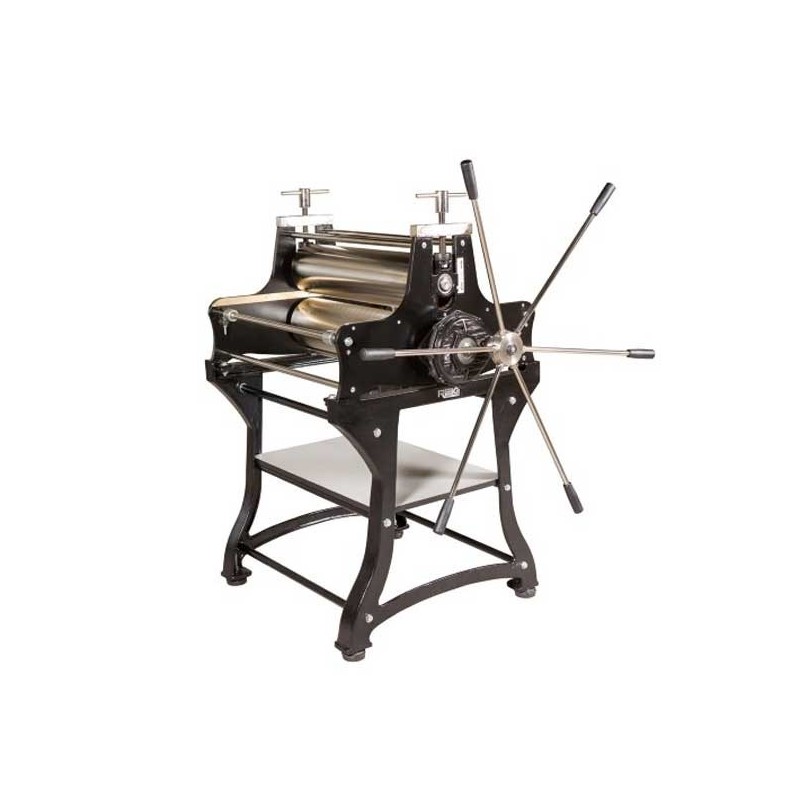

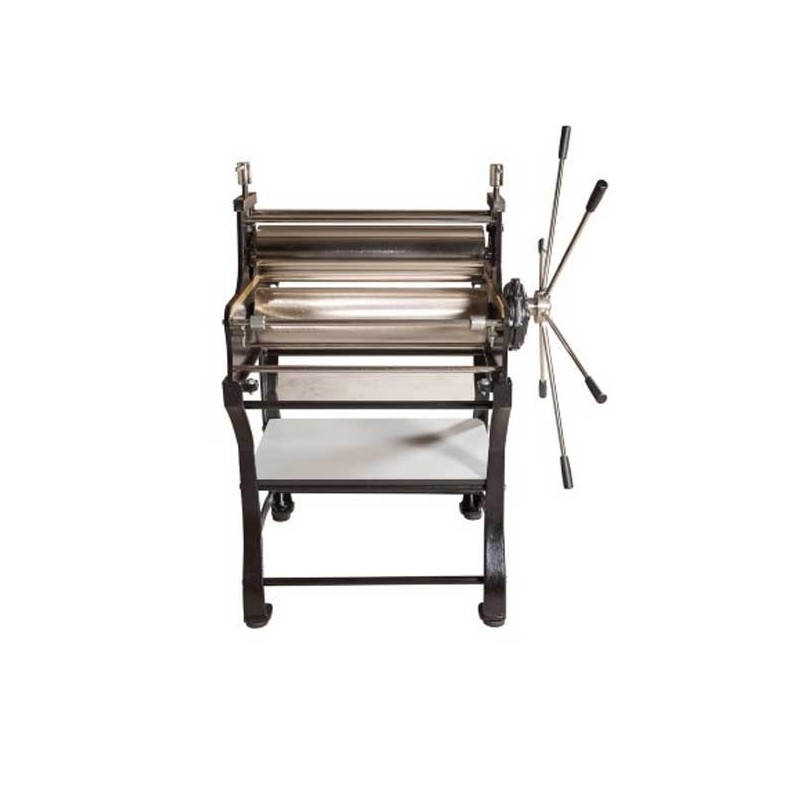

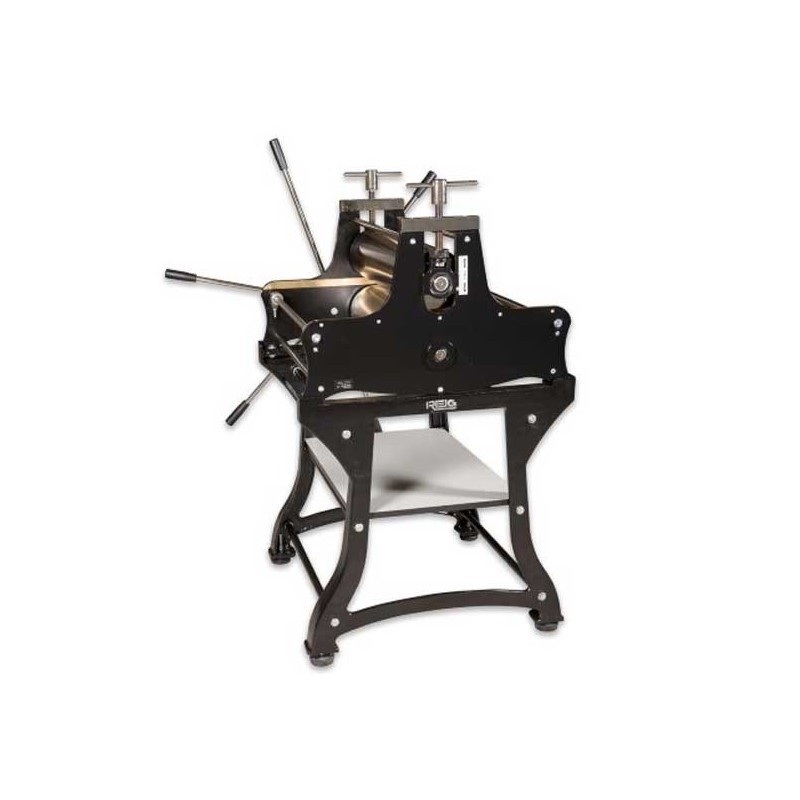

- Professional etching press for stamping with incorporate table, made of chrome steel and painted in epoxy.
- With reducer (relation 1 to 8).
- Diameter of the cilinders: 200 mm, with lower roll knurled.
- Capacity of the platen: 750 mm wide by 1600 mm long.
- Activation by 6 handles.
- Maximum aperture of cilinders: 65 mm.
- Top cilinder with top oscillating bearings.
- graduable scales to detect the pressure of the cilinders.
- Incorporates 4 rolling wheels for the platen support.
- The platen is guided by 2 bronze side guides.
- It has 4 regulators to balance the platen.
- Dimensions of the etching press: Length: 1000 mm, width: 815 mm, height: 1400mm
- Approximate weight: 250 kgs.
- Anti-deformation rigid fiber platen of 748 x 1600 x 20 mm.
- GIFT: Acetate registration, (stamp framing).
- GIFT: Felt of 3 mm and 5 mm.
