ref: R600D -vol-

Reig

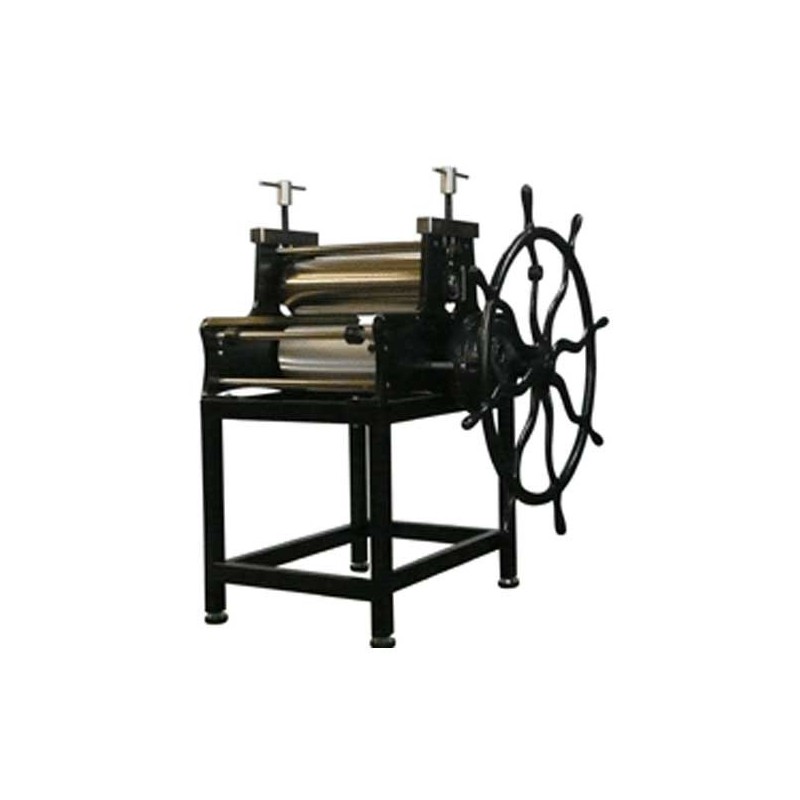

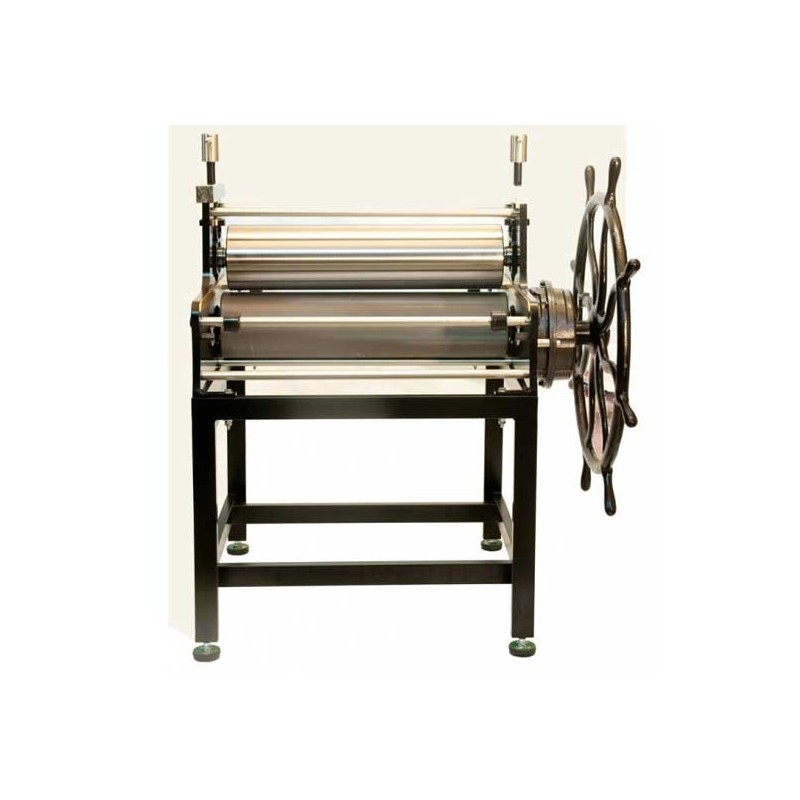

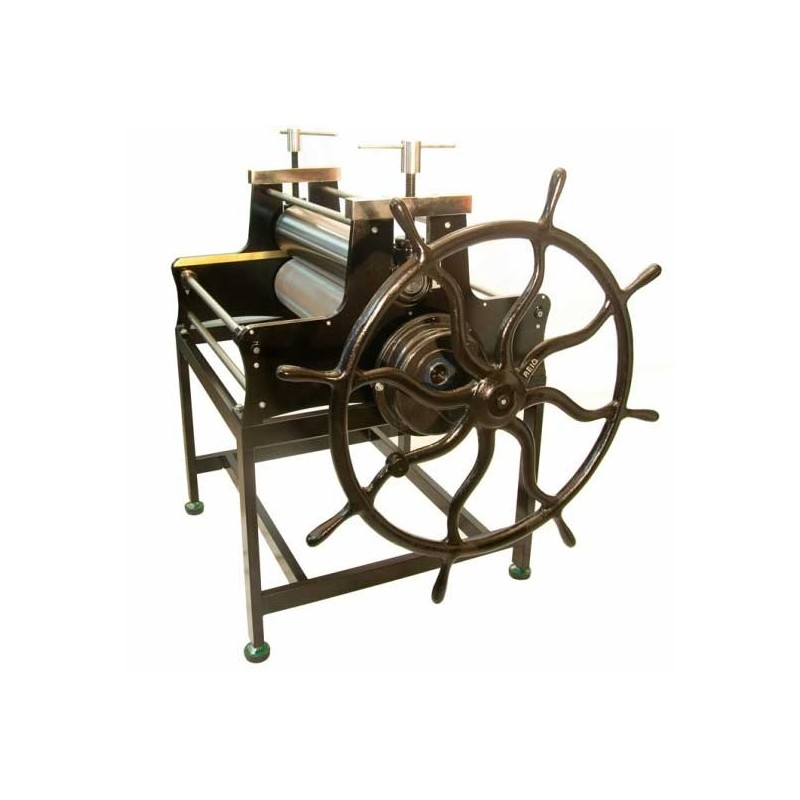

Professional Etching Press R600D (wheel)

IMPORTANTE: La alta demanda de Tórculos de los últimos meses puede provocar un retraso en los plazos de entrega por parte de fábrica en algunos modelos. Si su pedido es muy urgente, indíquelo al hacer el pedido para que le informemos de la fecha estimada.

Details

  • Professional etching press for stamping with incorporate table, made of chrome steel and painted in epoxy.
  • With reducer (relation 1 to 20).

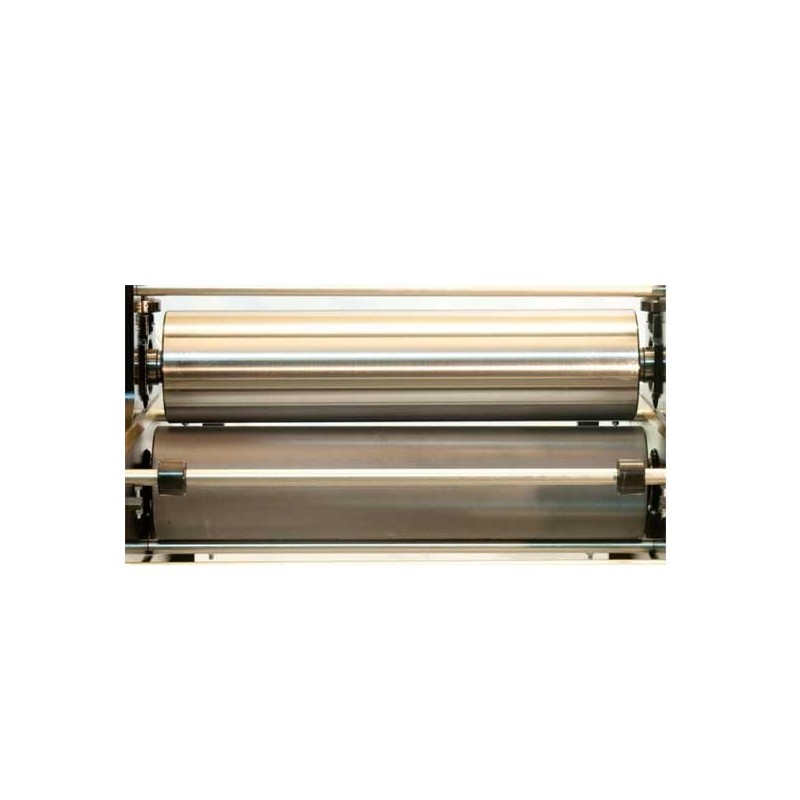

  • Diameter of the cilinders: 190 mm, with lower roll knurled.
  • Capacity of the platen: 590 mm wide by 1600 mm long.
  • Activation by 1 wheel.
  • Maximum aperture of cilinders: 60 mm.
  • Top cilinder with top oscillating bearings.
  • graduable scales to detect the pressure of the cilinders.
  • Incorporates 4 rolling wheels for the platen support.
  • The platen is guided by 2 bronze side guides.
  • It has 4 regulators to balance the platen.
  • Dimensions of the etching press: Length: 800 mm, width: 900 mm, height: 726mm
  • Dimensions of the table: Length: 910 mm, width: 640 mm, Height: 650 mm.
  • Approximate weight: 300 kgs.
  • Anti-deformation rigid fiber platen of 590 x 1600 x 20 mm.
  • GIFT: Acetate registration, (stamp framing).
  • GIFT: Felt of 3 mm and 5 mm.
