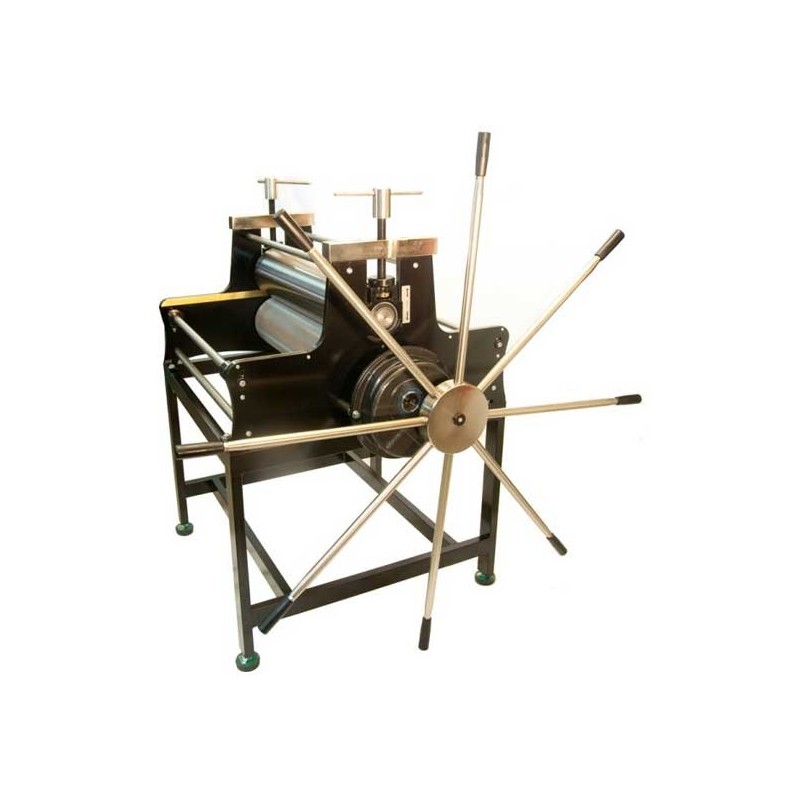

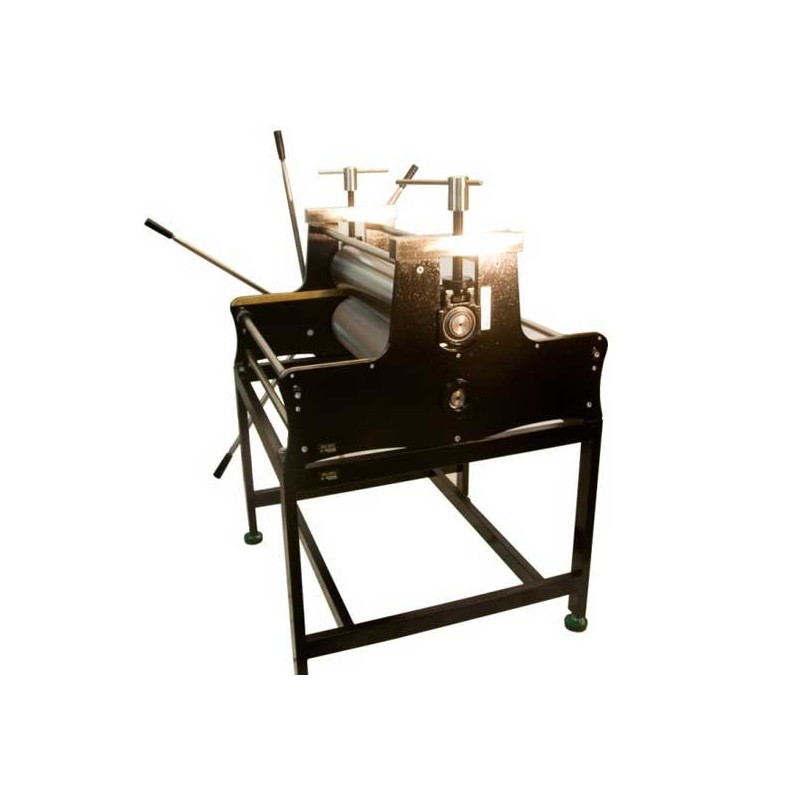

Torculo Grabado (080-A) R800B -aspas + reductor 1/20- Reig


Details

  • Professional etching press for stamping with incorporate table, made of chrome steel and painted in epoxy.
  • With reducer (relation 1 to 20).
  • Diameter of the cilinders: 190 mm, with lower roll knurled.
  • Capacity of the platen: 851 mm wide by 1600 mm long.

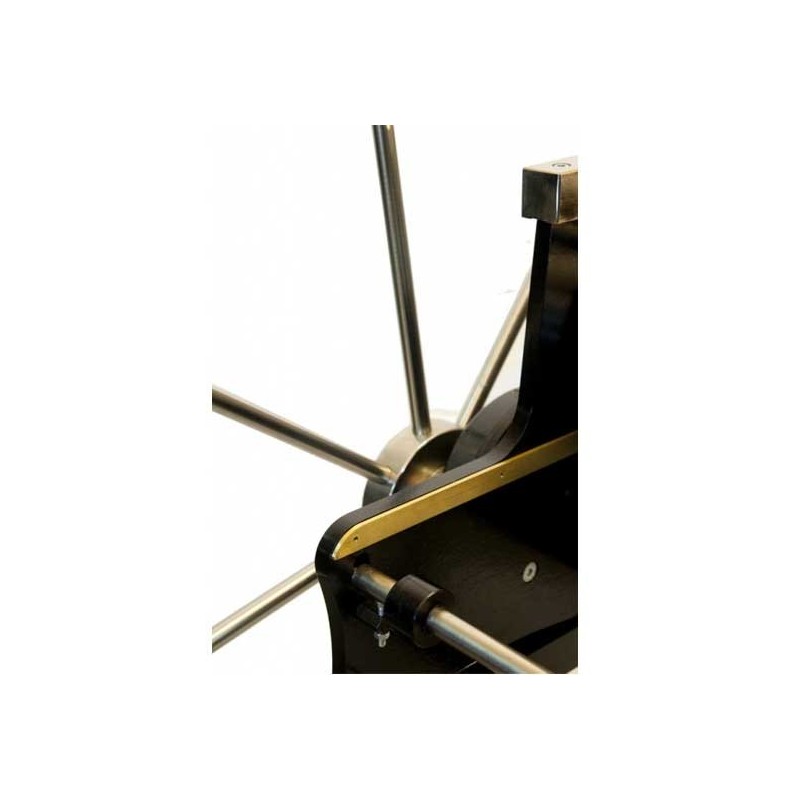

  • Activation by 8 handles.
  • Maximum aperture of cilinders: 60 mm.
  • Top cilinder with top oscillating bearings.
  • graduable scales to detect the pressure of the cilinders.
  • Incorporates 4 rolling wheels for the platen support.
  • The platen is guided by 2 bronze side guides.
  • It has 4 regulators to balance the platen.
  • Dimensions of the etching press: Length: 1050 mm, width: 900 mm, height: 726mm
  • Dimensions of the table: Length: 910 mm, width: 910 mm, Height: 650 mm.
  • Approximate weight: 400 kgs.
  • Anti-deformation rigid fiber platen of 851 x 1600 x 20 mm.
  • GIFT: Acetate registration, (stamp framing).
  • GIFT: Felt of 3 mm and 5 mm.
