ref: R600C -asp-

Reig

Torculo Grabado (160-A) R600C -aspas + reductor 1/8- Reig

€3,699.90

Details

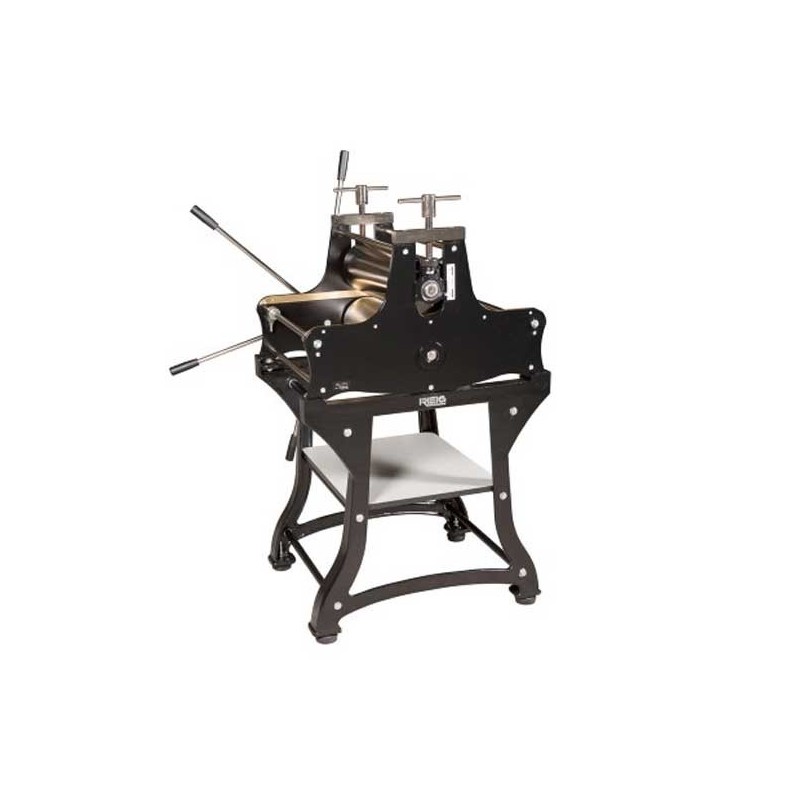

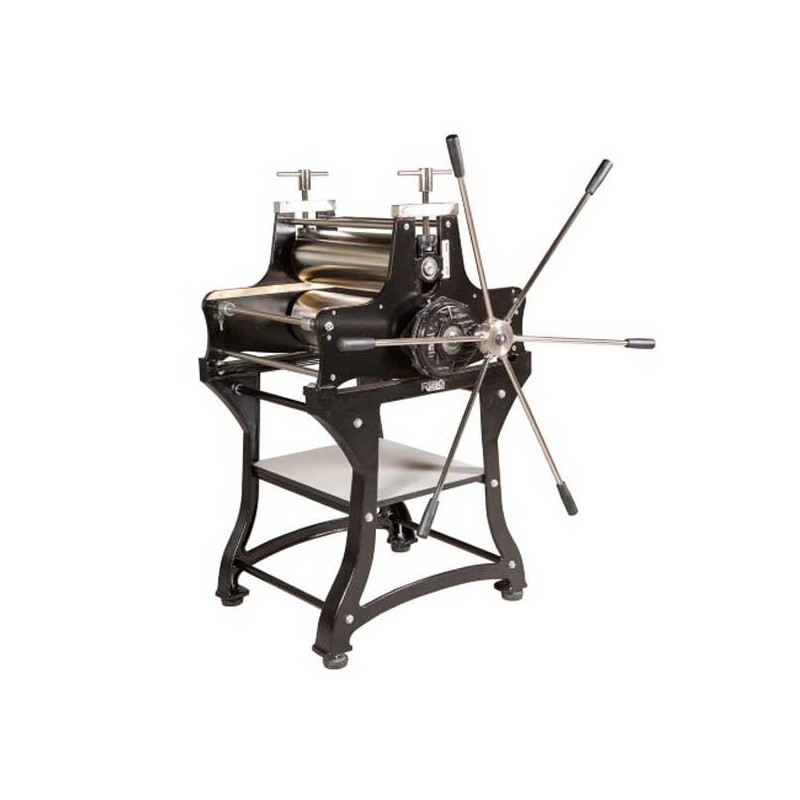

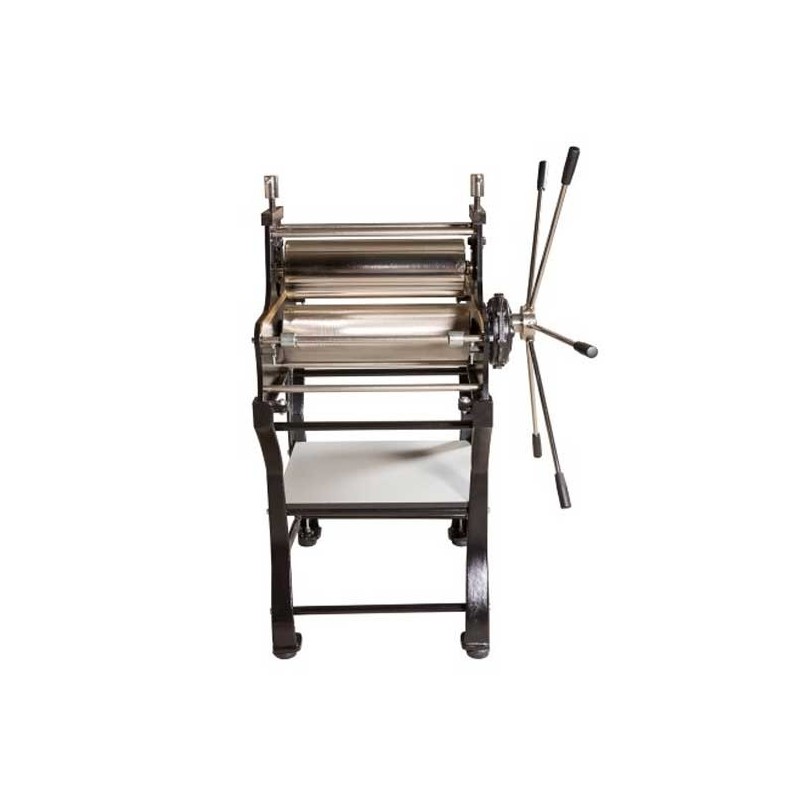

  • Professional etching press for stamping with incorporate table, made of chrome steel and painted in epoxy.

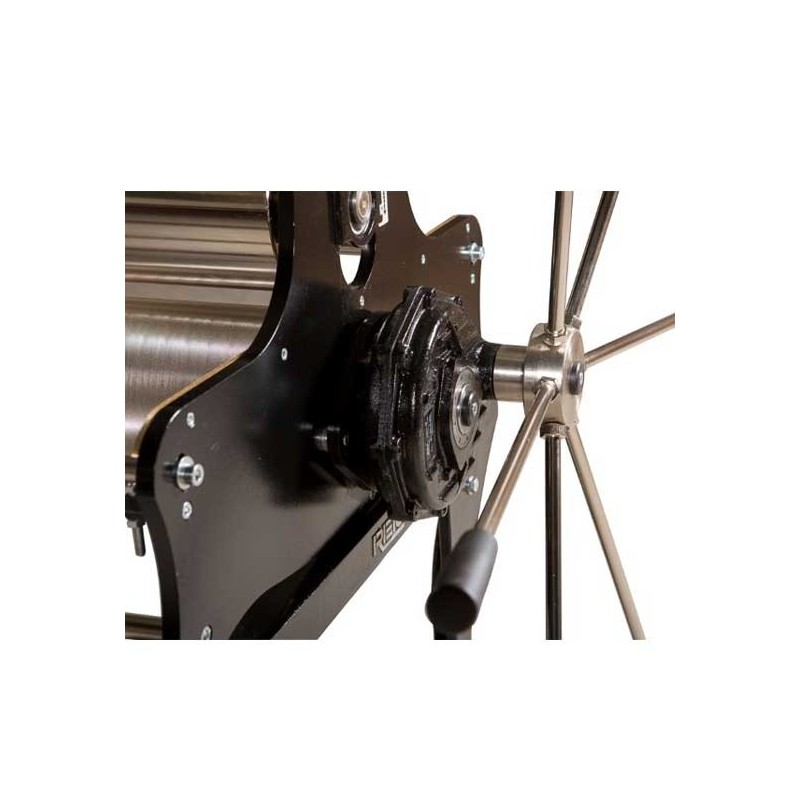

  • With reducer (relation 1 to 8).
  • Diameter of the cilinders: 200 mm, with lower roll knurled.
  • Capacity of the platen: 582 mm wide by 1600 mm long.
  • Activation by 6 handles.
  • Maximum aperture of cilinders: 65 mm.
  • Top cilinder with top oscillating bearings.
  • graduable scales to detect the pressure of the cilinders.
  • Incorporates 4 rolling wheels for the platen support.
  • The platen is guided by 2 bronze side guides.
  • It has 4 regulators to balance the platen.
  • Dimensions of the etching press: Length: 840 mm., width: 815 mm., Heigh. 1400 mm
  • Approximate weight: 200 kgs.
  • Anti-deformation rigid fiber platen of 582 x 1600 x 20 mm.
  • GIFT:Acetate registration, (stamp framing).
  • GIFT: Felt of 3 mm and 5 mm.
